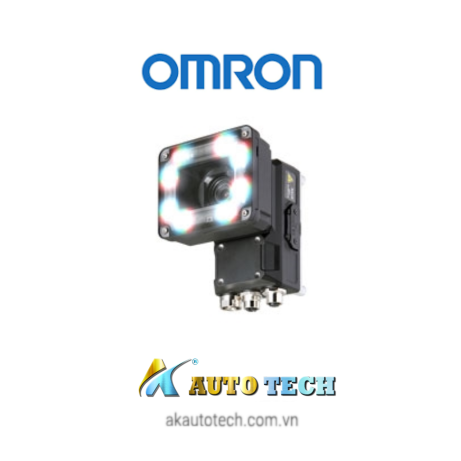

Cảm biến hình ảnh OMRON FHV7-Series

Cảm biến hình ảnh FHV7-Series cung cấp nhiều tùy chọn cho các thành phần, cho phép bạn kết hợp ống kính và đèn với camera một cách tự do và dễ dàng điều chỉnh các điều kiện quang học cho các sản phẩm cụ thể. Diện tích của camera không bị ảnh hưởng bởi việc thay thế mô-đun. Ngay cả khi có sự thay đổi đột ngột về thông số kỹ thuật của sản phẩm, hệ thống vẫn có thể sẵn sàng sau khi sắp xếp lại tối thiểu.

zalo chat 0973.915.037

Danh mục: Camera Omron, Machine Vision

Bạn nên chọn Akautotech vì

Là nhà cung cấp LỚN NHẤT

TRẢI NGHIỆM THỰC TẾ

Tại phòng Showroom

HỖ TRỢ SETUP MIỄN PHÍ

Từ chuyên gia giải pháp

XỬ LÝ BẢO HÀNH 24H

Cho toàn bộ Sản phẩm

1 ĐỔI 1 LÊN TỚI 60 NGÀY

Chi tiết xem

HỖ TRỢ TRỌN ĐỜI

Kỹ thuật, bảo hành, sửa chữa

GIAO HÀNG MIỄN PHÍ 30KM

Chi tiết xem

Mô tả

Cảm biến hình ảnh OMRON FHV7-Series: Giải pháp kiểm soát chất lượng hàng đầu

OMRON FHV7-Series là một trong những dòng camera thông minh hàng đầu hiện nay, được thiết kế đặc biệt để đáp ứng nhu cầu kiểm soát chất lượng ngày càng cao trong các ngành công nghiệp. Với những tính năng vượt trội, FHV7-Series mang đến một giải pháp toàn diện cho các ứng dụng kiểm tra thị giác, từ đơn giản đến phức tạp.

Thông số kỹ thuật:

Smart Camera:

Model			FHV7X- M004-C	FHV7X- C004-C	FHV7X- M016-C	FHV7X- C016-C	FHV7X- M032-C	FHV7X- C032-C
Specifi- cations	Operation Mode	Standard	Yes
		Double speed multi-input	Yes
		Non-stop adjustment mode	Yes
	Parallel processing		Yes
	Possible No. of captured images		256		64		36
	Possible No. of logging images to Smart Camera		645		161		79
	Possible No. of scenes		128 *1
	UI operation		Remote Operation Tool
	Setup		Create the processing flow using Flow editing.
	Language		Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging	CMOS Image elements		1/2.9-inch equivalent		1/2.9-inch equivalent		1/1.8-inch equivalent
	Color/Monochrome		Monochrome	Color	Monochrome	Color	Monochrome	Color
	Effective pixels (H x V)		720 × 540		1440 × 10⁸0		2048 × 1536
	Pixel size		6.9 × 6.9 µm		3.45 × 3.45 µm		3.45 × 3.45 µm
	Imaging area H × V (opposing corner)		5.0 × 3.8 (6.3 mm)		5.0 × 3.8 (6.3 mm)		7.1 × 5.3 (8.9 mm)
	Shutter system		Global Shutter
	Shutter function		Electronic shutter: Shutter speed can be set from 1 µs to 100 ms.
	Partial function		4 to 540 lines (4-line increments)		4 to 1080 lines (4-line increments)		4 to 1536 lines (4-line increments)
	Frame rate (image acquisition time)		430 fps (2.3 ms)		224 fps (4.5 ms)		55 fps (18.0 ms)
	Lens mounting		C mount
	Field of view, Installation distance		Selecting a lens according to the field of view and installation distance
External Interface	Serial		RS-232C × 1
	Ethernet		Protocol: Non-procedure (TCP/UDP) I/F: 1000BASE-T × 1
	EtherNet/IP		Yes (Target/Ethernet port)
	PROFINET		Yes (Slave/Ethernet port), Conformance class A
	Parallel I/O		NPN/PNP common
	Parallel I/O	Input signals	4 signals • STEP (Measurement trigger input) • DI 0 to 2 (Command input signal)
	Parallel I/O	Output signals	5 signals • ERROR (ON when there is an error) • OR (Overall Judgement Result) • BUSY (Processing in progress) • READY (ON when Image input is allowed) • STGOUT/SHTOUT (Strobe trigger signal/Shutter output signal)
	Encoder I/F		N/A
	Monitor I/F		N/A
	USB I/F		N/A
	SD Card I/F		microSD card: SDHC × 1
Indicator Lamps		Main	PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
Indicator Lamps		SD	SD ACCESS: Yellow
Supply Voltage			21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption			With lighting modules: 4.2 A or less Without lighting modules: 0.60 A
Usage Environ ment	Ambient temperature range		Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range		Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere		No corrosive gases
	Vibration tolerance		Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times With standard lens modules, FHV-LEM-S: Half amplitude: 0.15 mm (Others are the same as above.)
	Shock resistance		Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
	Noise immunity		Fast transient burst • DC power Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min. • I/O line Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
	Grounding		Class D grounding (100 Ω or less grounding resistance) *2
External shape	Dimensions		110 mm × 68.5 mm × 55.5 mm (H × W × D)
	Weight		Approx. 670 g
	Degree of protection		With lighting modules or waterproof hoods: IEC60529 – IP67 (except a connector cap removed) Other than the above: IEC60529 – IP40
	Case material		Aluminum die-casting (ADC12)
Accessories			• Connector cap for Ethernet cable (mounted on the body): 1 • Connector cap for an external lighting (mounted on the body): 1 • C mount cap (mounted on the body): 1 • C mount cover (mounted on the body): 1 • Instruction sheet: 1 • Membership registration: 1 • General Compliance Information and Instructions for EU: 1

Model			FHV7X- M050-C	FHV7X- C050-C	FHV7X- M063R-C	FHV7X- C063R-C	FHV7X- M120R-C	FHV7X- C120R-C
Specifi- cations	Operation Mode	Standard	Yes
		Double speed multi-input	Yes
		Non-stop adjustment mode	Yes
	Parallel processing		Yes
	Possible No. of captured images		25		19		10
	Possible No. of logging images to Smart Camera		50		39		19
	Possible No. of scenes		128 *1
	UI operation		Remote Operation Tool
	Setup		Create the processing flow using Flow editing.
	Language		Japanese, English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Korean, Vietnamese, Polish
Imaging	CMOS Image elements		2/3-inch equivalent		1/1.8-inch equivalent		1/1.7-inch equivalent
	Color/Monochrome		Monochrome	Color	Monochrome	Color	Monochrome	Color
	Effective pixels (H x V)		2448 × 2048		3072 × 2048		4000 × 3000
	Pixel size		3.45 × 3.45 µm		2.4 × 2.4 µm		1.85 × 1.85 µm
	Imaging area H × V (opposing corner)		8.5 × 7.1 (11.1 mm)		7.4 × 5.0 (8.9 mm)		7.4 × 5.6 (9.3 mm)
	Shutter system		Global Shutter		Rolling shutter (Global reset mode compatible)
	Shutter function		Electronic shutter: Shutter speed can be set from 1 µs to 100 ms.		Electronic shutter: Shutter speed can be set from 55 µs to 100 ms.		Electronic shutter: Shutter speed can be set from 84 µs to 100 ms.
	Partial function		4 to 2048 lines (4-line increments)		4 to 2048 lines (4-line increments)		4 to 3000 lines (4-line increments)
	Frame rate (image acquisition time)		35 fps (28.0 ms)		59 fps (16.7 ms)		19 fps (25.0 ms)
	Lens mounting		C mount
	Field of view, Installation distance		Selecting a lens according to the field of view and installation distance
External Interface	Serial		RS-232C × 1
	Ethernet		Protocol: Non-procedure (TCP/UDP) I/F: 1000BASE-T × 1
	EtherNet/IP		Yes (Target/Ethernet port)
	PROFINET		Yes (Slave/Ethernet port), Conformance class A
	Parallel I/O		NPN/PNP common
	Parallel I/O	Input signals	4 signals • STEP (Measurement trigger input) • DI 0 to 2 (Command input signal)
	Parallel I/O	Output signals	5 signals • ERROR (ON when there is an error) • OR (Overall Judgement Result) • BUSY (Processing in progress) • READY (ON when Image input is allowed) • STGOUT/SHTOUT (Strobe trigger signal/Shutter output signal)
	Encoder I/F		N/A
	Monitor I/F		N/A
	USB I/F		N/A
	SD Card I/F		microSD card: SDHC × 1
Indicator Lamps		Main	PWR: Green, RUN: Green, LINK: Yellow, BUSY: Green, OR: Yellow, ERR: Red
Indicator Lamps		SD	SD ACCESS: Yellow
Supply Voltage			21.6 VDC to 26.4 VDC (When an I/O cable with 20 m is connected, it is 24.0 VDC to 26.4 VDC.)
Current Consumption			With lighting modules: 4.2 A or less Without lighting modules: 0.60 A
Usage Environ ment	Ambient temperature range		Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range		Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere		No corrosive gases
	Vibration tolerance		Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times With standard lens modules, FHV-LEM-S: Half amplitude: 0.15 mm (Others are the same as above.)
	Shock resistance		Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
	Noise immunity		Fast transient burst • DC power Direct infusion: 2kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min. • I/O line Direct infusion: 1kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms/0.75 ms, Period: 300 ms, Application time: 1 min.
	Grounding		Class D grounding (100 Ω or less grounding resistance) *2
External shape	Dimensions		110 mm × 68.5 mm × 55.5 mm (H × W × D)
	Weight		Approx. 670 g
	Degree of protection		With lighting modules or waterproof hoods: IEC60529 – IP67 (except a connector cap removed) Other than the above: IEC60529 – IP40
	Case material		Aluminum die-casting (ADC12)
Accessories			• Connector cap for Ethernet cable (mounted on the body): 1 • Connector cap for an external lighting (mounted on the body): 1 • C mount cap (mounted on the body): 1 • C mount cover (mounted on the body): 1 • Instruction sheet: 1 • Membership registration: 1 • General Compliance Information and Instructions for EU: 1

Lens Modules

High-speed Lens Modules (Autofocus)

Item		FHV-LEM-H06	FHV-LEM-H19
System		Liquid lens auto focus
Installation distance		102 to 650 mm	202 to 1050 mm
Horizontal field of view range *	0.4 million pixels	64 × 48 mm to 505 × 376 mm	50 × 37 mm to 266 × 200 mm
	1.6 million pixels	64 × 48 mm to 505 × 376 mm	50 × 37 mm to 266 × 200 mm
	3.2 million pixels	92 × 68 mm to 731 × 539 mm	71 × 53 mm to 378 × 284 mm
	6.3 million pixels	97 × 63 mm to 766 × 499 mm	74 × 49 mm to 394 × 264 mm
Focal length *		6 mm	19 mm
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
External shape	Dimension	50 mm × 41.1 mm × 37.1 mm (H × W × D)	50 mm × 41.1 mm × 36.3 mm (H × W × D)
	Weight	Approx. 25 g
	Case material	Polycarbonate
Accessories		• Special cover for FHV-LEM-H: 1 • Screws: M3 × 8 mm: 5 (including one spare piece) • Instruction sheet: 1 • Compliance sheet: 1

Standard Lens Modules (Autofocus)

Item		FHV-LEM-S06	FHV-LEM-S09	FHV-LEM-S12	FHV-LEM-S16	FHV-LEM-S25
System		Mechanical auto focus
*Focal length range 1**		59 to 1,000 mm	60 to 1,000 mm	60 to 1,000 mm	110 to 2,000 mm	188 to 2,000 mm
Horizon- tal field of view range *1	0.4 million pixels	39 × 29 to 845 × 624 mm	24 × 18 to 543 × 407 mm	17 × 13 to 407 × 305 mm	27 × 20 to 614 × 461 mm	30 × 23 to 391 × 293 mm
	1.6 million pixels	39 × 29 to 845 × 624 mm	24 × 18 to 543 × 407 mm	17 × 13 to 407 × 305 mm	27 × 20 to 614 × 461 mm	30 × 23 to 391 × 293 mm
	3.2 million pixels	57 × 42 to 1,234 × 905 mm	34 × 25 to 772 × 579 mm	24 × 18 to 579 × 434 mm	38 × 29 to 874 × 655 mm	43 × 33 to 556 × 417 mm
	6.3 million pixels	50 × 39 to 1,293 × 836 mm	35 × 23 to 807 × 538 mm	25 × 17 to 606 × 404 mm	40 × 27 to 913 × 608 mm	45 × 30 to 581 × 387 mm
Focal length		6 mm	9 mm	12 mm	16 mm	25 mm
Usage environ- ment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.15 mm *2, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
External shape	Dimension	50 mm × 41 mm × 31 mm (H × W × D)
	Weight	Approx. 50 g
	Case material	Polycarbonate
Accessories		• Special cover for FHV-LEM-S: 1 • Screws: M3 × 8 mm: 5 (including one spare piece) • Instruction sheet: 1 • Compliance sheet: 1

Lighting Modules

Model		FHV-LTM-W	FHV-LTM-R	FHV-LTM-IR	FHV-LTM-MC
Color		White	Red	Infrared light	Multi color
Peak wave length		–	Typ. 630 nm	Typ. 850 nm	R: Typ. 630 nm G: Typ. 525 nm B: Typ. 465 nm IR: Typ. 850 nm
Light source		LED	LED	LED	LED
Risk group		Group 2	Group 1	Group 1	R: Group 1 G: Group 2 B: Group 2 IR: Group 1
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Dimensions		52 mm × 91 mm × 77 mm (H × W × D)
Weight		270 g	270 g	270 g	270 g
Material		Aluminum die-casting (ADC12), polycarbonate
Accessories		• Waterproof packing (small) FHV-XWP-CAM:1 • Waterproof packing (large) FHV-XWP-LTM: 1 • Light shielding sheet FHV-XLS-LTM: 1 • Lighting cover FHV-XCV: 1 • Hexagonal wrench (length: 60 mm): 1 • Instruction sheet: 1 • Compliance sheet: 1

Optical Filters

Model		FHV-XDF	FHV-XPL	FHV-XPL-IR
Filter type		Diffusion filter	Polarization filter	Polarization filter
Wavelength		Visible to infrared	Visible	Visible to infrared
Adapted lighting module		FHV-LTM-W FHV-LTM-R FHV-LTM-IR FHV-LTM-MC	FHV-LTM-W FHV-LTM-R FHV-LTM-MC (Infrared light is not used.)	FHV-LTM-W FHV-LTM-R FHV-LTM-IR FHV-LTM-MC
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Vibration tolerance	No corrosive gases
	Shock resistance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Vibration tolerance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Aluminum (A6061), polycarbonate
Weight		Approx. 70 g	Approx. 70 g	Approx. 70 g

Waterproof Hoods

Model		FHV-XHD-S	FHV-XHD-L	FHV-XHD-LEM
Suitable lens		3Z4S-LE SV-V series SV-0614V SV-0813V SV-1214V SV-1614V SV-2514V	3Z4S-LE SV-H series SV-0614H 1 SV-0814H 2 SV-1214H SV-1614H SV-2514H SV-3514H SV-5014H	FHV-LEM-S series FHV-LEM-S06 FHV-LEM-S09 FHV-LEM-S12 FHV-LEM-S16 FHV-LEM-S25FHV-LEM-H series FHV-LEM-H06 FHV-LEM-H09
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 35 to 85%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Aluminum (A6061), polycarbonate
Weight		Approx. 220 g	Approx. 220 g	Approx. 220 g

Smart Camera Data Unit

Item		Parallel interface	EtherCAT interface
Model		FHV-SDU10	FHV-SDU30
Input/output specifications	Parallel I/O	Input: 12 Output: 24 (NPN/PNP combined use)	Input: 1 Output: 2 (NPN/PNP combined use)
Input/output specifications	EtherCAT communications	None	Yes (slave)
Smart Camera Interface		Special cable to connect No. of connectable cameras: 1
Indicator	Main	POWER: Green, ERROR: Red, RUN: Green, BUSY: Green, CAMERA: Yellow, OR: Yellow
Indicator	EtherCAT	None	ECAT RUN: Green, LINK/ACT IN: Green, LINK/ACT OUT: Green, ECAT ERROR: Red
Power supply voltage		21.6 to 26.4 VDC (Note: 24.0 to 26.4 VDC when a data unit cable with 20 m is connected.)
Insulation resistance		Between DC terminal block and FG terminal: 0.5 MΩ (250V Megger)
Current consumption		4.5 A or less
Usage environment	Ambient temperature range	Operating: 0 to +50°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating and storage: 35 to 85%RH (with no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.1 mm, Vibration direction: X/Y/Z, Sweep time: 8 minutes, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, Three times each (up/down, front/behind, left/right)
	Noise immunity	Fast transient burst • DC power Direct infusion: 2 kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms / 0.75 ms, Period: 300 ms, Application time: 1 minute • I/O line Coupling clamp: 1 kV, Pulse rising: 5 ns, Pulse width: 50 ns, Burst continuation time: 15 ms / 0.75 ms, Period: 300 ms, Application time: 1 minute
	Grounding	Class D grounding (100 Ω or less grounding resistance) * Existing the third class grounding
External shape	Dimensions	H (90 mm) × W (93 mm) × D (65 mm)	H (90 mm) × W (124 mm) × D (65 mm)
	Weight	Approx. 250 g	Approx. 325 g
	Degree of protection	IEC60529 – IP20
	Case material	PC+ABS, PC
Accessories		• Instruction sheet: 1 • Compliance sheet: 1

I/O cables

Bending Resistance Cables

Item		FHV- VDB2 2M	FHV- VDLB2 2M	FHV- VDB2 3M	FHV- VDLB2 3M	FHV- VDB2 5M	FHV- VDLB2 5M
Cable length		2 m		3 m		5 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Size	Power line	AWG21
Size	Others	AWG26
Outer diameter		8.8±0.3 mm dia.
Min. bending radius		Fixed use: 40 mm, Sliding use: 70 mm
Input/Output signals	Input signals	4 signals: STEP, DI 0 to 2
	Output signals	5 signals: ERROR, OR, BUSY, READY, STGOUT/SHTOUT
	RS-232C	2 signals: Transmission data, Reception data
Usage environment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, PVC, Sheath part: PVC
Weight		Approx. 250 g		Approx. 370 g		Approx. 590 g

Item		FHV- VDB2 10M	FHV- VDLB2 10M	FHV- VDB2 20M	FHV- VDLB2 20M
Cable length		10 m		20 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Size	Power line	AWG21
Size	Others	AWG26
Outer diameter		8.8±0.3 mm dia.
Min. bending radius		Fixed use: 40 mm, Sliding use: 70 mm
Input/Output signals	Input signals	4 signals: STEP, DI 0 to 2
	Output signals	5 signals: ERROR, OR, BUSY, READY, STGOUT/SHTOUT
	RS-232C	2 signals: Transmission data, Reception data
Usage environment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, PVC, Sheath part: PVC
Weight		Approx. 1,170 g		Approx. 2,310 g

Super Bending Resistance Cables

Item		FHV-VDBX2 5M	FHV-VDLBX2 5M	FHV-VDBX2 10M	FHV-VDLBX2 10M
Cable length		5 m		10 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Super bending resistance cable
Size	Power line	AWG19
Size	Others	AWG26
Outer diameter		7.2+0.7 mm dia.
Min. bending radius		44 mm
Input/ Output signals	Input signals	1 signal: STEP
Input/ Output signals	Output signals	3 signals: OR, READY, STGOUT/SHTOUT
Usage environ- ment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: Nylon, PVC, Sheath part: PVC
Weight		Approx. 420 g		Approx. 790 g

Ethernet Cables

Bending Resistance Cables

Item		FHV- VNB2 2M	FHV- VNLB2 2M	FHV- VNB2 3M	FHV- VNLB2 3M	FHV- VNB2 5M	FHV- VNLB2 5M
Cable length		2 m		3 m		5 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Outer diameter		6.7±0.3 mm dia.
Min. bending radius		Fixed use: 35 mm, Sliding use: 50 mm
Usage environment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: PVC, Sheath part: PVC
Weight		Approx. 140 g		Approx. 200 g		Approx. 310 g

Item		FHV-VNB2 10M	FHV-VNLB2 10M	FHV-VNB2 20M	FHV-VNLB2 20M
Cable length		10 m		20 m
Connector type		Straight connector	Rightangle connector	Straight connector	Rightangle connector
Cable type		Bending resistance cable
Outer diameter		6.7±0.3 mm dia.
Min. bending radius		Fixed use: 35 mm, Sliding use: 50 mm
Usage environment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: PVC, Sheath part: PVC
Weight		Approx. 590 g		Approx. 1,150 g

Super Bending Resistance Cables

Item		FHV-VNBX2 5M	FHV-VNLBX2 5M	FHV-VNBX2 10M	FHV-VNLBX2 10M
Cable length		5 m		10 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Super bending resistance cable
Outer diameter		6.6+0.7 mm dia.
Min. bending radius		40 mm
Usage environ- ment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: PVC, Sheath part: PVC
Weight		Approx. 390 g		Approx. 730 g

External Light Junction Cables for MDMC Light

Item		FHV-VFLX-GD
Cable length		0.1 m
Outer diameter		4.0±0.1 mm dia.
Min. bending radius		15 mm
Usage environment	Ambient temperature range	Operating: 0 to +40°C, Storage: -25 to +65°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Shell part: Zinc alloy and Brass, Sheath part: Heat-resistant oilproof polyvinyl chloride
Weight		Approx. 30 g

Smart Camera Data Unit Cable

Bending Resistance Cables

Item		FHV- VUB2 2M	FHV- VULB2 2M	FHV- VUB2 3M	FHV- VULB2 3M	FHV- VUB2 5M	FHV- VULB2 5M
Cable length		2 m		3 m		5 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Bending resistance cable
Outer diameter		7.8±0.3 mm dia.
Min. bending radius		Fixed use: 40 mm, Sliding use: 65 mm
Usage environ- ment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: PVC, Sheath part: PVC
Weight		Approx. 200 g		Approx. 290 g		Approx. 470 g

Item		FHV- VUB2 10M	FHV- VULB2 10M	FHV- VUB2 20M	FHV- VULB2 20M
Cable length		10 m		20 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Bending resistance cable
Outer diameter		7.8±0.3 mm dia.
Min. bending radius		Fixed use: 40 mm, Sliding use: 65 mm
Usage environ- ment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: PVC, Sheath part: PVC
Weight		Approx. 900 g		Approx. 1,780 g

Super Bending Resistance Cables

Item		FHV-VUBX2 5M	FHV-VULBX2 5M	FHV-VUBX2 10M	FHV-VULBX2 10M
Cable length		5 m		10 m
Connector type		Straight connector	Right angle connector	Straight connector	Right angle connector
Cable type		Super bending resistance cable
Outer diameter		7.5+0.6 mm dia.
Min. bending radius		47 mm
Usage environ- ment	Ambient temperature range	Operating: -10 to +70°C, Storage: -25 to +85°C (with no icing or condensation)
	Ambient humidity range	Operating & Storage: 0 to 93%RH (With no condensation)
	Ambient atmosphere	No corrosive gases
	Vibration tolerance	Oscillation frequency: 10 to 150 Hz, Half amplitude: 0.35 mm, Vibration direction: X/Y/Z, Sweep time: 8 minute/count, Sweep count: 10 times
	Shock resistance	Impact force: 150 m/s², Test direction: 6 directions, three time each (up/down, front/behind, left/right)
Material		Mold part: PVC, Sheath part: PVC
Weight		Approx. 490 g		Approx. 920 g

Touch panel monitor

Model		PPC-310-OMR (Advantech)
LCD	Display Type	10.4″ TFT LCD (LED backlight)
	Resolution	1,024 × 768
	Luminance	350 cd/m²
	Contrast Ratio	1,000
	Backlight Lifetime	30,000 hr (min.)
	Touch Type	Capacitive
External Interface	Ethernet	10/100/1,000/2,500 Mbps Ethernet × 2
External Interface	USB I/F	USB 2.0 × 2, USB 3.0 × 2, TypeC × 1
Power Consumption	Input Voltage	12 to 30 VDC
Power Consumption	Power Consumption	35 W
Environ- ment	Ambient Temperature Range	Operating: 0 to 50°C Storage: -20 to 60°C
	Ambient Humidity Range	10% to 95% at 40°C (With no condensation)
	Vibration	Operating Random Vibration Test 5 to 500 Hz, 2 Grms, follow IEC 60068-2-64
	Shock	Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
	EMC	CE, FCC Class B, BSMI, UKCA, VCCI
	Safety	CB, CCC, UL, UKCA
Dimensions		272 × 217 × 50 mm
Weight		3.1 kg
Front Panel Protection		IP66 compliant
Mounting		Panel mount, VESA mount, Wall mount
Accessories		Instruction sheet, Connector for power supply, Mounting screws and brackets for panel mount

Đặc điểm nổi bật của FHV7-Series

Ánh sáng đa màu: Công nghệ ánh sáng đa màu độc đáo giúp camera thích ứng với các đối tượng có màu sắc và kích thước khác nhau, đảm bảo độ chính xác cao trong kiểm tra.
Độ phân giải cao: Cảm biến hình ảnh 12 megapixel cho phép chụp ảnh chi tiết, giúp phát hiện các lỗi nhỏ nhất trên sản phẩm.
Tốc độ xử lý nhanh: Khả năng xử lý hình ảnh nhanh chóng, đáp ứng yêu cầu sản xuất tốc độ cao.
Tính linh hoạt: Dễ dàng tích hợp vào hệ thống tự động hóa hiện có, phù hợp với nhiều ứng dụng khác nhau.
Các tính năng nâng cao: Tự động lấy nét, đo lường chính xác, nhận dạng ký tự, mã vạch,…

Ứng dụng của FHV7-Series

Kiểm tra kích thước, hình dạng: Đảm bảo sản phẩm đúng tiêu chuẩn.
Nhận dạng ký tự, mã vạch: Xác thực thông tin trên sản phẩm.
Phát hiện khuyết tật: Loại bỏ sản phẩm lỗi trước khi đến tay khách hàng.
Điều khiển robot: Tăng độ chính xác trong các quá trình tự động hóa.
Kiểm tra lắp ráp: Đảm bảo các bộ phận được lắp ráp đúng vị trí.

Vì sao nên chọn FHV7-Series?

Nâng cao chất lượng sản phẩm: Giảm thiểu lỗi, tăng độ tin cậy của sản phẩm.
Tăng năng suất: Tự động hóa quá trình kiểm tra, giảm thiểu thời gian và nhân công.
Giảm chi phí: Tiết kiệm chi phí do giảm thiểu sản phẩm lỗi và nâng cao hiệu quả sản xuất.

Kết luận

OMRON FHV7-Series là một giải pháp toàn diện cho các ứng dụng kiểm tra thị giác trong sản xuất. Với những tính năng vượt trội, sản phẩm này sẽ giúp doanh nghiệp nâng cao chất lượng sản phẩm, tăng năng suất và cạnh tranh trên thị trường.

AK AutoTech đưa ra các thông số kỹ thuật cơ bản để bạn có thể tham khảo thêm. Chi tiết về FQ2-Series, bạn có thể tham khảo tại đây.

AK AutoTech là đơn vị cung cấp các giải pháp và các thiết bị xử lý ảnh trong công nghiệp với chi phí tối ưu nhất. Yêu cầu báo giá xin liên hệ:

Hotline: 0973 915 037/ 0989 790 206

Facebook: https://www.facebook.com/akautotech.com.vn
